OCA-H1000BC-A200
Model | OCA-H1000BC-A200 | |
---|---|---|
Type of mounting | Lateral mounting | |
Cooling capacity ※1 | 800/1000W | |
Rated voltage | Single phase 200VAC 50/60Hz | |
Current consumption ※2 | Rated | 3.3/3.1A |
Max. | 3.7/3.7A | |
Starting current | 13.4/11.6A | |
Power consumption ※2 | Rated | 570/610W |
Max. | 670/730W | |
Compressor motor output | 375W | |
Working temperature ※3 | +20 to+50℃ | |
Working humidity | Not exceeding 85%RH, free from condensation | |
Noise (Characteristic A) | 65dB | |
Setting temperature range ※3 | +30 to +45℃ (Initial setting: +35℃) | |
Display | Internal temperature, Alarm code/Operation lamp, Alarm lamp | |
Function |
|
|
External output | Alarm output 1c 240V 1.5A×2(COMMON) | |
Vibration resistance |
|
|
Protective category | Internal circuit : IP54 equivalent | |
Applicable standards |
EMC Directive | EN61000-6-2 and EN61000-6-4 compliant |
LV Directive | EN60335-1, EN60335-2-40, EN62233 | |
Environment | RoHS | |
Refrigerant | R1234yf (470g) | |
GWP | <1 | |
Body color | Powder coating/ N8/N4 equivalent | |

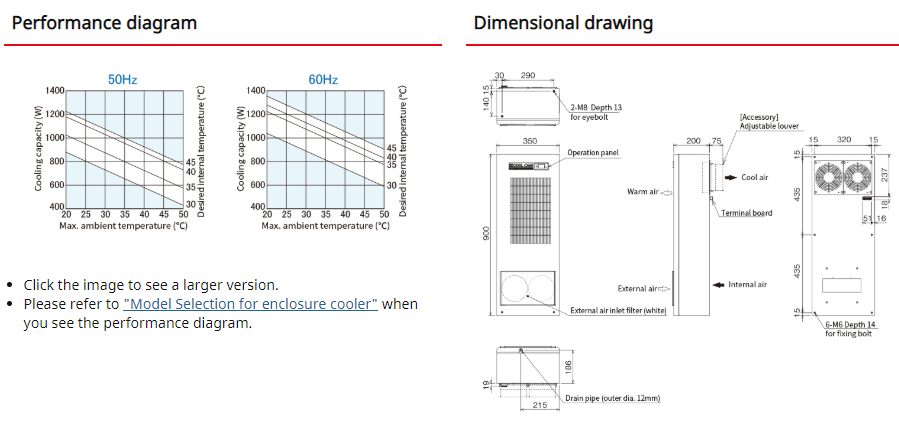

Dimensions(in mm) | W350×H900×D200 | |
Weight | 31.0kg |
*1. Nominal values when temperatures both inside and outside the enclosure is 35℃.
*2. Values at 35℃ temperature both inside and outside are indicated in “Rated” and values at 50℃ outside and 35℃ inside are indicated in “Max.”
*3. These products should not be used outside the temperature range.
*4. Drain pipe is excluded.
*5. By IPCC 5th Report 2013
●Please contact us for other supply voltages than 200VAC.
●Supply voltage should be within the fluctuation range of 10% from the rated voltage.
